Pinned Bag Rigidity Sweep
Score Definitions
| score | definition | implementation detail |
|---|
stretch_score |
RMS relative edge length change. |
For every unique triangle edge, compute (current_length - rest_length) / rest_length, then take RMS over all bag edges. |
shear_score |
RMS in-plane triangle distortion. |
For each triangle, compute its three internal angle changes from the rest mesh, then take RMS over all triangle angles. Units are radians. |
bend_score |
RMS dihedral angle change. |
For every pair of adjacent triangles sharing an edge, compute the change in angle between their face normals from rest, then take RMS. Units are radians. |
The runs scale the in-plane stiffnesses cloth_tri_ke and cloth_tri_ka together with the bending stiffness cloth_edge_ke by one shared multiplier, so every elastic stiffness changes by the same factor. Damping (cloth_tri_kd, cloth_edge_kd) and inertia (cloth_density) are held fixed, so only elastic stiffness — not damping or mass — varies across cases. The combined video shows the recordings in one time-synced row.

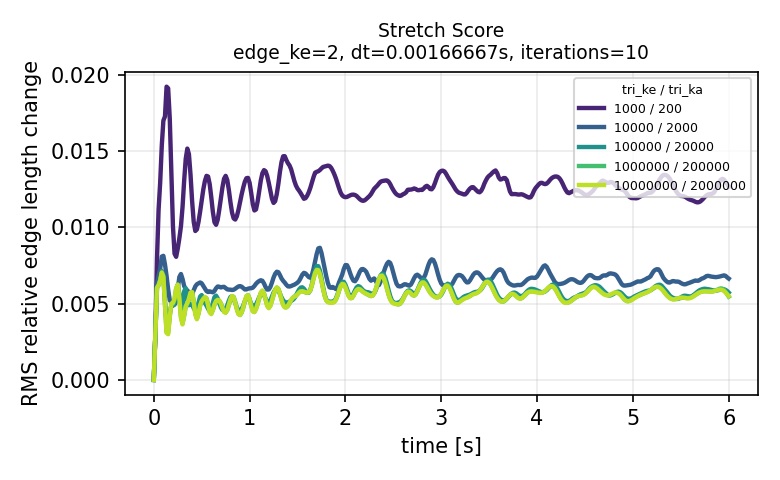

Stretch Score

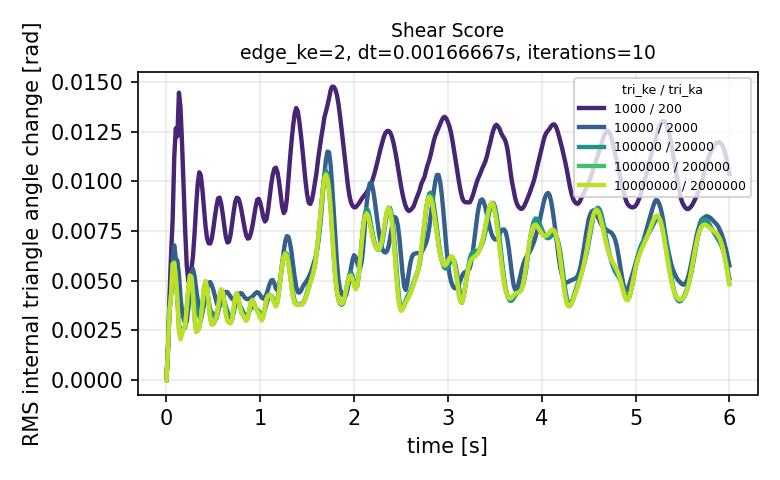

Shear Score

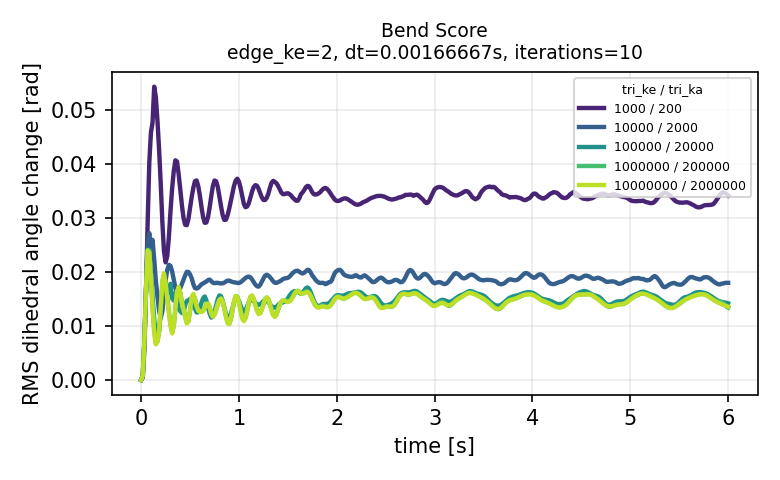

Bend Score
Score Summary
| cloth_tri_ke | cloth_tri_ka | score | final | peak | mean |
|---|
| 1000 | 200 | stretch_score | 0.0126485 | 0.0192117 | 0.0125036 |
| 1000 | 200 | shear_score | 0.0103723 | 0.0147791 | 0.0103079 |
| 1000 | 200 | bend_score | 0.0341391 | 0.0542963 | 0.0337682 |
| 10000 | 2000 | stretch_score | 0.00663817 | 0.0086553 | 0.00655548 |
| 10000 | 2000 | shear_score | 0.0057673 | 0.0115095 | 0.00631408 |
| 10000 | 2000 | bend_score | 0.01798 | 0.0271861 | 0.0185185 |
| 100000 | 20000 | stretch_score | 0.00572155 | 0.00746176 | 0.00562365 |
| 100000 | 20000 | shear_score | 0.00512803 | 0.0105452 | 0.00572575 |
| 100000 | 20000 | bend_score | 0.014187 | 0.0241625 | 0.0149067 |
| 1000000 | 200000 | stretch_score | 0.00545637 | 0.00723398 | 0.00551799 |
| 1000000 | 200000 | shear_score | 0.00483587 | 0.0103773 | 0.00566885 |
| 1000000 | 200000 | bend_score | 0.0133809 | 0.0239963 | 0.0144641 |
| 10000000 | 2000000 | stretch_score | 0.00549039 | 0.00719803 | 0.00550497 |
| 10000000 | 2000000 | shear_score | 0.00482103 | 0.0103397 | 0.0056605 |
| 10000000 | 2000000 | bend_score | 0.0135776 | 0.0239794 | 0.0144102 |
